Access Aggregation Routers

Access Aggregation with Right Fit Form Factors, Protocols, Performance and Availability

Access Aggregation Routers

Ribbon's Access Aggregation Routers are designed to meet the diverse needs of service providers and enterprises, providing a range of form factors, protocols, and performance levels. These routers are optimized for cost-effective access aggregation and pre-aggregation, ensuring that operators can efficiently manage their networks while delivering high-quality services.

A rich set of form factors provide the modular and fixed configurations, alongside fully redundant and non-redundant options, required to meet the diverse operational requirements of each operators access aggregation and pre-aggregation architectures.

Ribbon's IP rNOS provides comprehensive support for today's middle mile with robust, dynamic, and deterministic packet transport functionality. This ensures that services are transported to meet their performance requirements on a service-by-service basis. With Ribbon's unique multi-stack MPLS the right protocol is used to meet service needs today and in the future.

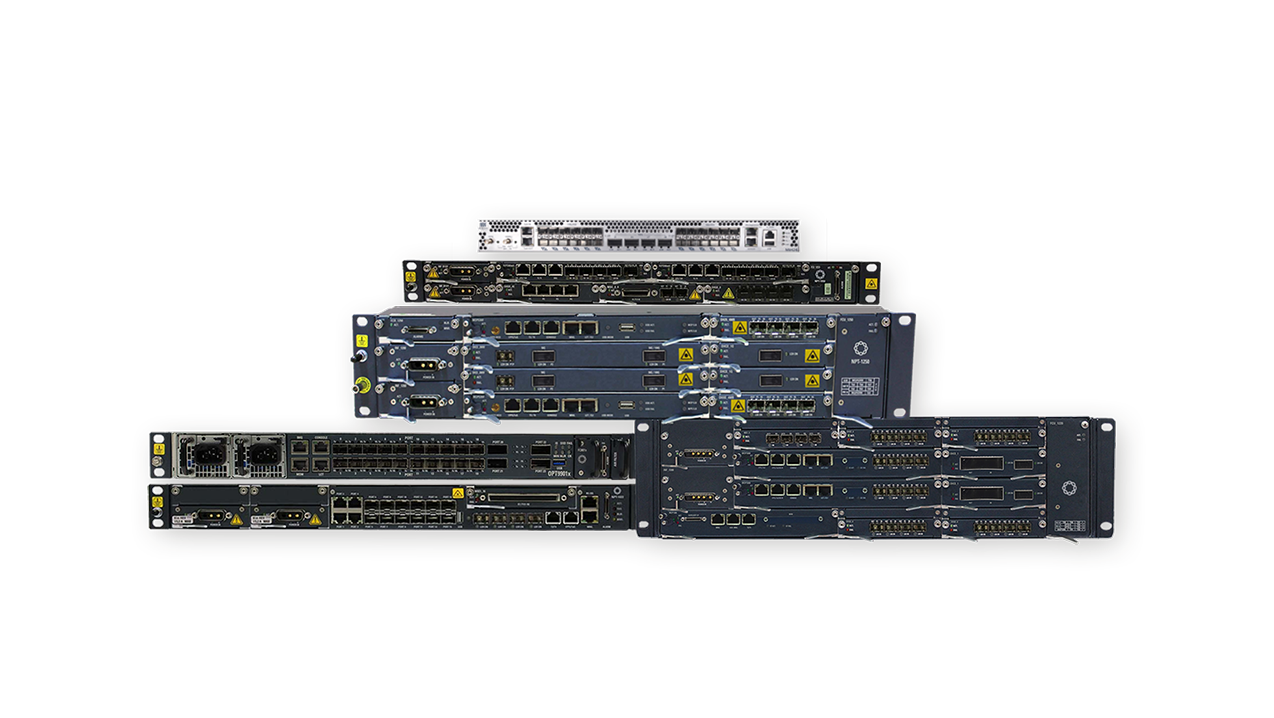

Access Aggregation Routers

NPT 1022

1RU platform providing 64 Gbps switching capacity. Supporting IP/MPLS and MPLS-TP from a single platform.

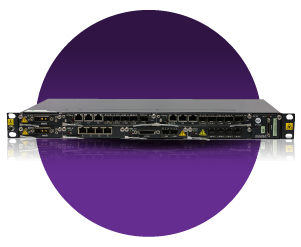

NPT 1050

Compact fully redundant, modular multi-access access router, optimized for carrier class deployment.

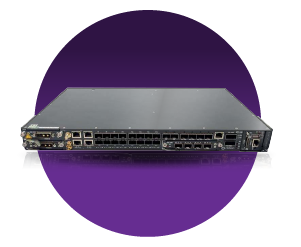

NPT 1100

High capacity, density access router optimized as a cell site router, providing 300G switching capacity in a 1 RU form factor.

NPT 1250

Multiservice, fully redundant platform, that is an access hub for 5G and broadband backhaul networks. Provides 560Gbit interface switching, 300 Gbit/s processing capacity in 2RU form factor.

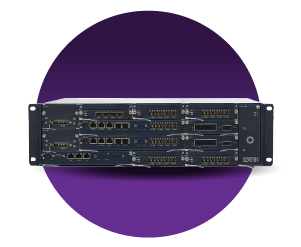

NPT 1300

Compact, high-performance, multiservice aggregation router with full redundancy for high-availability applications. Provides 1 Tbps switching capacity in a 3RU shelf

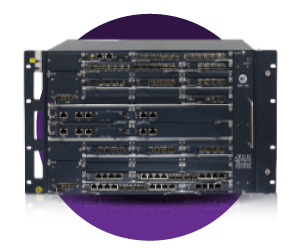

NPT 1800

Multiservice aggregation router that provides full redundancy. It provides 2 Tbps switching capacity in an 8RU shelf.

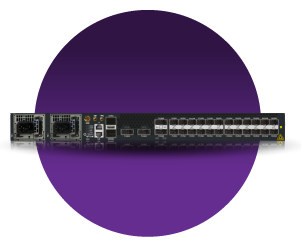

NPT 2100

High capacity, density access router, providing 800G capacity in a 1RU form factor. Supports multi-access technologies in a temperature hardened architecture.

Ribbon's IP Wave rNOS

Ribbon's IP Wave rNOS is a unified NOS used across our entire IP portfolio.

Muse Multi-Layer Automation Platform

MUSE™ rapidly creates and provisions innovative services, ensuring the network is continuously optimized and available

NPT Product Family

Access Aggregation

Router	NPT 1022	NPT 1050	NPT 1100	NPT 1250	NPT 1300	NPT 1800	NPT 2100
Fit	High Capacity CPE and Access Aggregation	High Availability Access Aggregation	Compact Access Aggregation	High Availability Multiservice Access Aggregation	High Capacity, High Availability Access Aggregation	High Availability Multiservice Aggregation	Compact High Performance Access Aggregation and DCSG
Form Factor	Fixed and modular variants	Modular fully redundant	Fixed and modular variants	Modular fully redundant	Modular fully redundant	Modular fully redundant	Fixed
Height	1RU	1RU	1RU	2RU	3RU	8RU	1RU
Switching Silicon	Qumran -UX	Qumran -UX	Qumran -AX	Qumran -AX	Qumran -MX	Jericho+	Qumran -2A
Switching Capacity	Modular: 64 Gbps Fixed: 96 Gbps	300 Gbps	300 Gbps	300 Gbps	1Tbps	2Tbps	800 Gbps
High-Speed Optical I/Fs		CWDM, DWDM, 100G, coherent ZR, OPENZR+	CWDM, DWDM, 100G coherent, ZR & OPENZR+	CWDM, DWDM, 100G coherent	CWDM, DWDM, 100G coherent	CWDM, DWDM, 100G coherent	CWDM, DWDM, 100G/200G/400G coherent, ZR & OPENZR+
Datasheet	NPT 1022	NPT 1050	NPT 1100	NPT 1250	NPT 1300	NPT 1800	NPT 2100
